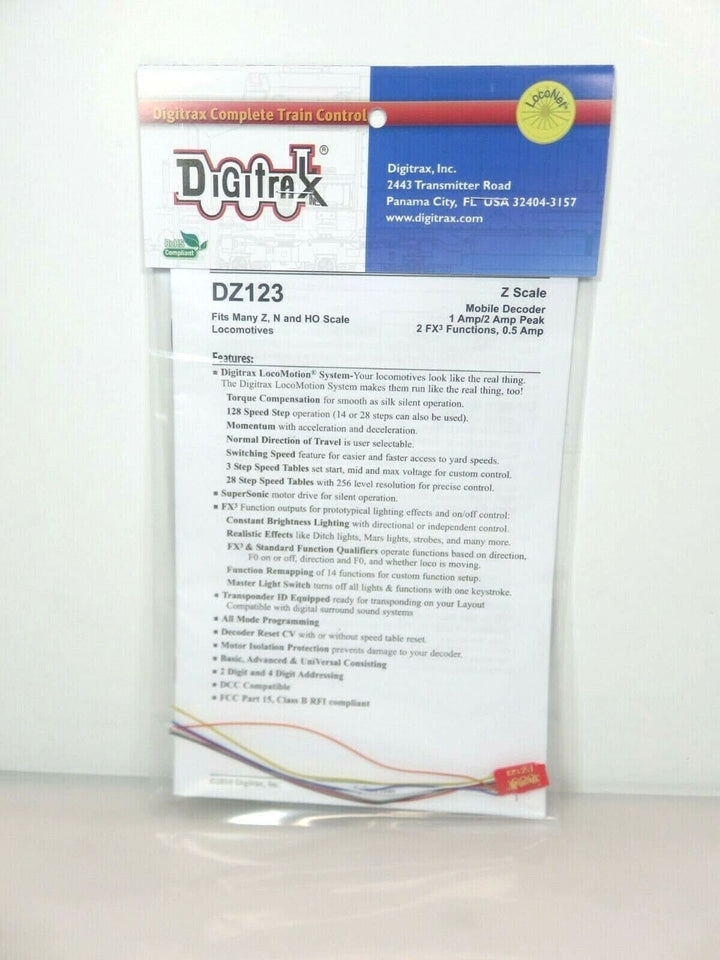

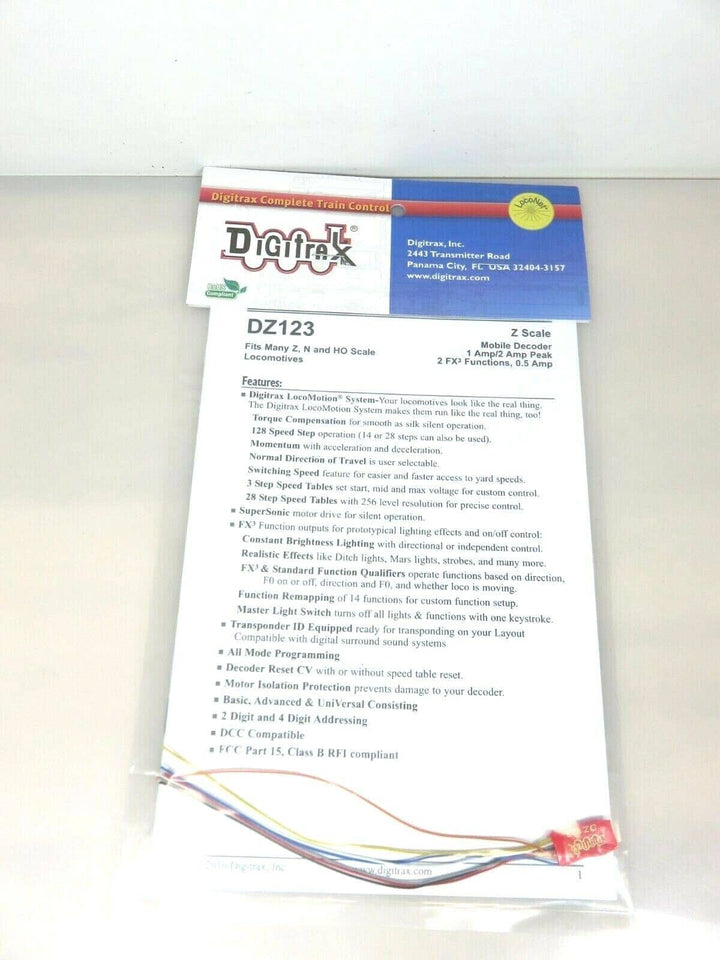

Digitrax DZ123 Mobile Decoder Z/N/HO Scale 1 Amp/ 2 Amp Peak NIB
ABOUT THIS PRODUCT
Digitrax DZ123 Mobile Decoder Z/N/HO Scale 1 Amp/ 2 Amp Peak
Torque Compensation for smooth as silk silent operation.
*
** 128 Speed Step operation (14 or 28 steps can also be used).
** Momentum with acceleration and deceleration.
** Normal Direction of Travel is user selectable.
** Switching Speed feature for easier and faster access to yard speeds.
** 3 Step Speed Tables set start, mid and max voltage for custom control.
** 28 Step Speed Tables with 256 level resolution for precise control.
** SuperSonicā¢ motor drive for silent operation.
** FX3 Function outputs for prototypical lighting effects and on/off control.
** Constant Brightness Lighting with directional or independent control.
** Realistic Effects like Ditch lights, Mars lights, strobes, and many more.
** FX3 & Standard Function Qualifiers operate functions based on direction,
** F0 on or off, direction and F0, and whether loco is moving.
Function Remapping for custom function setup.
** Master Light Switch turns off all lights & functions with one keystroke.
** Decoder Lock equipped.
** Transponder equipped ready for transponding on your layout.
** All Mode Programming with Operations Mode Read Back reads back CV values right on the mainline.
** Decoder Reset CV with or without speed table reset.
** Motor Isolation Protection prevents damage to your decoder.
** Basic, Advanced & UniVersal Consisting
** 2 Digit and 4 Digit Addressing.
** Works with most DCC-ready Z, N, and HO scale locomotives up to 18V track voltage. UP6Z can be used to drop track voltage.
** DCC Compatible
** FCC Part 15, Class B RFI complian
** Size 0.36" x 0.55 x 0.13" (9.144mm x 13.97mm x 3.302mm)
Note: DZ123 does not have Scaleable Speed Stabilization (Back EMF)
***
Torque Compensation for smooth as silk silent operation.
*
** 128 Speed Step operation (14 or 28 steps can also be used).
** Momentum with acceleration and deceleration.
** Normal Direction of Travel is user selectable.
** Switching Speed feature for easier and faster access to yard speeds.
** 3 Step Speed Tables set start, mid and max voltage for custom control.
** 28 Step Speed Tables with 256 level resolution for precise control.
** SuperSonicā¢ motor drive for silent operation.
** FX3 Function outputs for prototypical lighting effects and on/off control.
** Constant Brightness Lighting with directional or independent control.
** Realistic Effects like Ditch lights, Mars lights, strobes, and many more.
** FX3 & Standard Function Qualifiers operate functions based on direction,
** F0 on or off, direction and F0, and whether loco is moving.
Function Remapping for custom function setup.
** Master Light Switch turns off all lights & functions with one keystroke.
** Decoder Lock equipped.
** Transponder equipped ready for transponding on your layout.
** All Mode Programming with Operations Mode Read Back reads back CV values right on the mainline.
** Decoder Reset CV with or without speed table reset.
** Motor Isolation Protection prevents damage to your decoder.
** Basic, Advanced & UniVersal Consisting
** 2 Digit and 4 Digit Addressing.
** Works with most DCC-ready Z, N, and HO scale locomotives up to 18V track voltage. UP6Z can be used to drop track voltage.
** DCC Compatible
** FCC Part 15, Class B RFI complian
** Size 0.36" x 0.55 x 0.13" (9.144mm x 13.97mm x 3.302mm)
Note: DZ123 does not have Scaleable Speed Stabilization (Back EMF)
***
