Train Control Systems TCS #1028 DP2X HO Scale 8 Pin DCC Decoder 2 Function
$31.48
ABOUT THIS PRODUCT

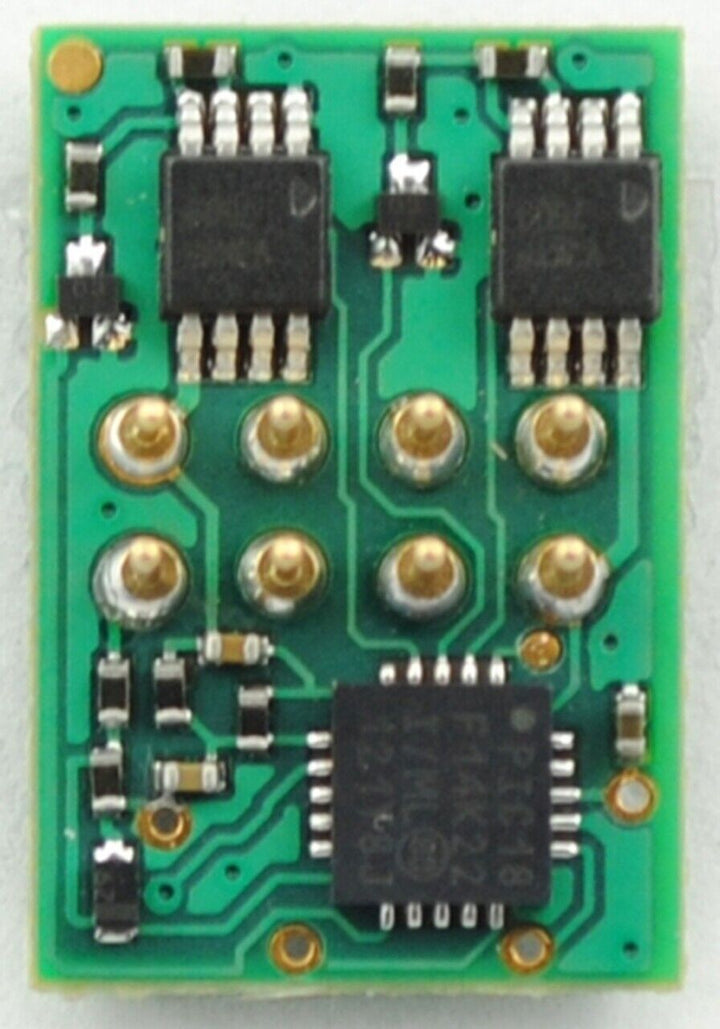

Train Control Systems TCS #1028 DP2X HO Scale 8 Pin DCC Decoder 2 Function
* HO-Scale decoder designed as a direct-plug replacement decoder for engines equipped with 8-pin NMRA sockets. By far one of the easiest decoders to install, the DP2X can be plugged into many locomotives with no effort.
*
Interface Type
Direct-Plug (8-Pin NMRA)
Dimensions (L x W x H): 0.474" x 0.702" x 0.12" or 12.04mm x 17.83mm x 3.05mm
Scale: HO Scale
Continuous/Peak: 1.0/2.0 Amp
Total Functions: 2
Function Rating: 80 mA
12V Outputs 2
*
* Back EMF Load Compensation:
Provides superior slow speed control and high performance under load.
* Quiet Drive:
Super-quiet motor control for "buzz" free motor performance.
* DC Mode:
Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
* RailCom®:
This feature allows the decoder to talk to the command station. RailCom supports expansion for new features.
* Variable Momentum:
Allows you to make custom acceleration and deceleration curves.
* Incandescent Bulb Support:
This decoder can be used with 12 Volt bulbs.
* Function Remapping:
Buttons 0 through 12 may be used to control the lighting functions of this decoder.
* Programmable Lighting Effects:
Choose from 20 separate user-programmable lighting effects!
* Dimmable Brightness:
Configure multiple different brightness levels for your LED's or incandescent bulbs.
* Decoder Lock:
Feature which prevents accidental/unwanted programming while activated.
* Airwireâ„¢ Compatible:
Fully compatible with Airwireâ„¢ operation.
* User-Loadable Speed Tables:
Configure custom speed curves and set speed limits.
* HO-Scale decoder designed as a direct-plug replacement decoder for engines equipped with 8-pin NMRA sockets. By far one of the easiest decoders to install, the DP2X can be plugged into many locomotives with no effort.
*
Interface Type
Direct-Plug (8-Pin NMRA)
Dimensions (L x W x H): 0.474" x 0.702" x 0.12" or 12.04mm x 17.83mm x 3.05mm
Scale: HO Scale
Continuous/Peak: 1.0/2.0 Amp
Total Functions: 2
Function Rating: 80 mA
12V Outputs 2
*
* Back EMF Load Compensation:
Provides superior slow speed control and high performance under load.
* Quiet Drive:
Super-quiet motor control for "buzz" free motor performance.
* DC Mode:
Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
* RailCom®:
This feature allows the decoder to talk to the command station. RailCom supports expansion for new features.
* Variable Momentum:
Allows you to make custom acceleration and deceleration curves.
* Incandescent Bulb Support:
This decoder can be used with 12 Volt bulbs.
* Function Remapping:
Buttons 0 through 12 may be used to control the lighting functions of this decoder.
* Programmable Lighting Effects:
Choose from 20 separate user-programmable lighting effects!
* Dimmable Brightness:
Configure multiple different brightness levels for your LED's or incandescent bulbs.
* Decoder Lock:
Feature which prevents accidental/unwanted programming while activated.
* Airwireâ„¢ Compatible:
Fully compatible with Airwireâ„¢ operation.
* User-Loadable Speed Tables:
Configure custom speed curves and set speed limits.
