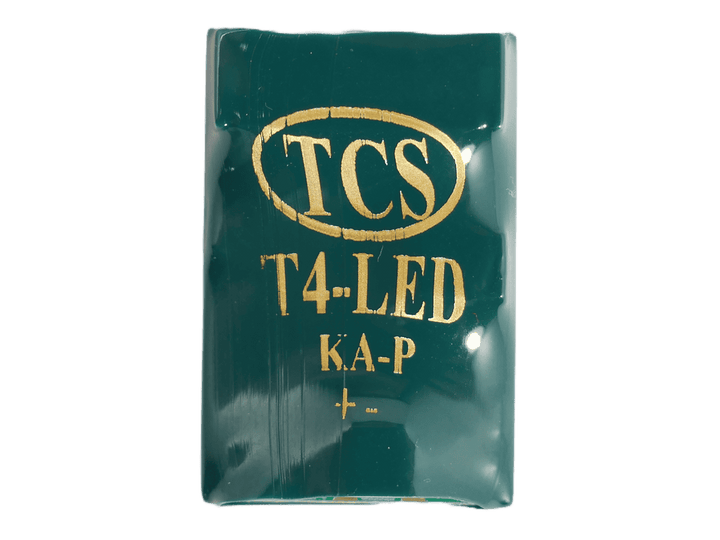

Train Control Systems TCS #1482 T4-LED HO Scale 4 Function DCC Decoder
Train Control Systems TCS #1482 T4-LED HO Scale DCC Decoder 4 Function
* The T4-LED has added Blue and Black/White wires to use a KeepAlive device. This model now includes a 2-pin JST Plug for the KA-P Family of KeepAlive® devices. This decoder may be hard-wired or plugged directly into any locomotive with a 9-pin JST plug. The onboard resistors on this decoder allow for LED installations without the need for external resistors for F0F, F0R, F1, or F2.
* Interface Type: Hard-Wire
* Direct-Plug (9-Pin JST)
* Dimensions (L x W x H): 0.969" x 0.661" x 0.193" or 24.61mm x 16.79mm x 4.9mm
* Scale: HO Scale
* Continuous/Peak: 1.3/2.0 Amp
* Total Functions: 4
* Function Rating: 100 mA
* 12V Outputs 4
